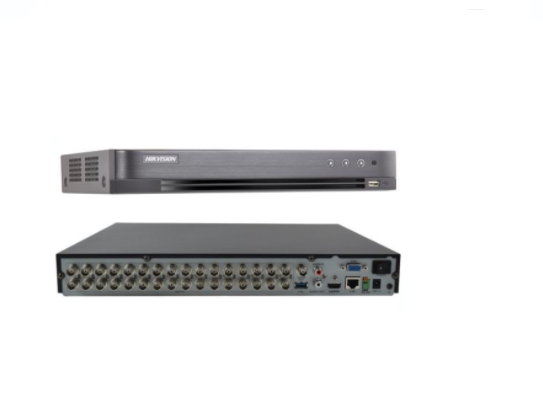

DVR TURBO 4.0 FULL HD 1080P 32 CANALES.

Descripción

DVR HIKVISION FULL HD 32CH + 8 IP, 2 HDD HASTA 10TB. 32 ENTRADA DE INTERFAZ TURBO HD / AHD / ANALÓGICA, COMPRESIÓN H.265 / H.265 +, 2 INTERFACES SATA, CH01-04: 3MP @ 15FPS, CH01- 32: 1920 × 1080P @ 15 FPS, 4MP LITE @ 15 FPS / CH, SALIDA 4K UHD, SOPORTE SALIDA CVBS, CAJA 380 1U.

Características

Video/Audio InputAudio Input:1-chAnalog and HD-TVI video input:24-ch, BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connectionSupported camera types:Support HDTIV input:4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25 Note: The 3 MP signal input is only available for channel 1/2/3/4.
Support AHD input:4 MP, 1080p25, 1080p30, 720p25, 720p30
Support HDCVI input: 1080p25, 1080p30, 720p25, 720p30
Support CVBS input:PAL/NTSCVideo Input Interface:BNC (1.0 Vp-p, 75Ω)Audio Compression:G.711uAudio Input Interface:RCA (2.0 Vp-p, 1 kΩ)Two-way Audio:1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the 1st channel of audio input)Video/Audio OutputCVBS Output:1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480HDMI/VGA Output:1-ch,4K (3840 × 2160)/30Hz,2K(2560 ×1440)/60Hz, 1920 ×1080/60Hz, 1280 ×1024/60 Hz, 1280 ×720/60Hz, 1024 ×768/60 HzFrame Rate:Main stream:
When 1080p Lite mode not enabled:
For 4 MP stream access: 4 MP lite@15fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25fps
(P)/30fps (N)
For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15fps
For 1080p stream access: 1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
When 1080p Lite mode enabled:
4 MP lite/3 MP@15fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
Sub-stream:
WD1/4CIF@12fps; CIF@25fps (P)/30fps (N)Video Bit Rate:32 Kbps-6 MbpsStream Type:Video/Video&AudioTwo-way Audio:1-ch, RCA (2.0 Vp-p, 1 kΩ) (using the audio input)Audio Output:1-ch RCA(Linear, 1kΩ)Audio Bit Rate:64kbpsDual Stream:SupportSynchronous Playback:16-chNetwork managementRemote connections:128Network protocols:TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIFHard Disk DriverInterface Type:2 SATA InterfacesExternal InterfaceNetwork Interface:1 RJ45 10M/100M/1000M adaptive Ethernet InterfaceUSB Interface:1 USB 2.0 Interface & 1 USB 3.0 InterfaceSerial Interface:1; standard RS-485 serial interface, half-duplexGeneralPower Supply:12 VDCConsumption:≤ 65 WWorking Temperature:-10 ºC to +55 ºC (+14 ºF to +131 ºF)Working Humidity:10% to 90%Dimensions:

Soporte

3 AÑOS DE GARANTÍA en todos los productos Hikvision, ofrecida por el fabricante, contra defectos de fabricación y/o vicios del material que afecten al normal funcionamiento del mismo.

Contamos con un departamento técnico, con stock permanente de repuestos, que le permitirá contar con un servicio en caso de necesidad de reparación del producto. Para más información diríjase a la sección Soporte Técnico..
