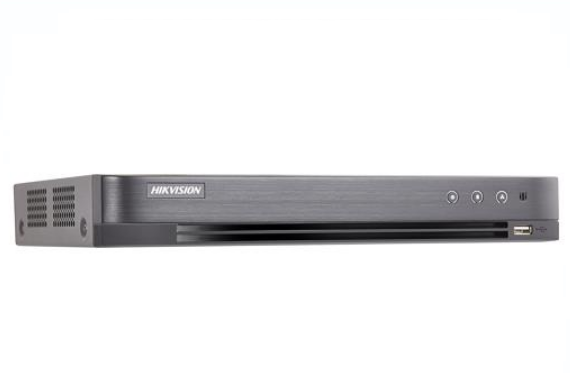

DVR TURBO 4.0 ACUSENSE FULL HD 4 CANALES + 1 IP

Descripción

DVR ACUSENSE 4 CANALES + 4 IP, SOPORTA HD-TVI, HD-CVI, AHD Y ANALÓGICAS.  GRABACIÓN EN H265 + / H265. SOPORTA 1 HDD TIENE 10 TB. 1 ENTRAD Y SALIDA DE AUDIO. SALIDAS DE VIDEO HDMI Y VGA SIMULTANEAS Y CBVS ADICIONAL.

Características

• Smart Analysis
• Facial Detection And CaptureFace picture comparison, face picture search
• Face Picture LibraryUp to 16 face picture libraries, with up to 500 face pictures in total (each picture ≤ 1 MB, total capacity ≤ 80 MB)
• Face Picture Comparison1-ch face picture comparison alarm (HD analog camera)

• Human/Vehicle Analysis
• False Alarm ReductionUp to 4-ch

• Recording
• Video CompressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
• Encoding ResolutionMain stream: 8 MP@8 fps/5 MP@12 fps/4 MP@15 fps/3 MP@18 fps 1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N) *: 8 MP@8 fps is only available for channel 1. Sub-stream: WD1/4CIF/CIF@25 fps (P)/30 fps (N)
• Video Bitrate32 Kbps to 10 Mbps
• Dual StreamSupport
• Stream TypeVideo, Video & Audio
• Audio CompressionG.711u
• Audio Bitrate64 Kbps

• Video And Audio
• IP Video Input2-ch (up to 6-ch) Up to 8 MP resolution IP enhanced mode on: 4-ch (up to 8-ch), each up to 4 Mbps Support H.265+/H.265/H.264+/H.264 IP cameras
• Analog Video Input4-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
• HDTVI Input8 MP, 5 MP, 4 MP, 3 MP, 1080p30, 1080p@25 fps, 720p@60 fps, 720p@50 fps, 720p@30 fps, 720p@25 fps *: The 8 MP signal input is only available for channel 1.
• AHD Input5 MP, 4 MP, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps
• HDCVI Input4 MP, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps
• CVBS InputPAL/NTSC
• CVBS Output1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
• VGA Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz HDMI/VGA simultaneous output
• HDMI Output1-ch, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz HDMI/VGA simultaneous output
• Audio Input1-ch, RCA (2.0 Vp-p, 1 KΩ)，4-ch via coaxial cable
• Audio Output1-ch, RCA (Linear, 1 KΩ)
• Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
• Synchronous Playback4-ch

• Network
• Remote Connection32
• Network ProtocolTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
• Network Interface1, RJ45 10/100 Mbps self-adaptive Ethernet interface

• Auxiliary Interface
• SATA1 SATA interface
• Capacityup to 10 TB capacity for each disk
• Serial InterfaceRS-485 (half-duplex)
• USB InterfaceFront panel: 1 × USB 2.0; Rear panel: 1 × USB 2.0
• Alarm In/OutN/A

• General
• Power Supply12 VDC, 1.5 A
• Consumption(Without HDD)≤ 10 W
• Working Temperature-10 °C to 55 °C (14 °F to 131 °F)
• Working Humidity10% to 90%
• Dimension (W × D × H)315 × 242 × 45 mm (12.4 × 9.5 × 1.8 inch)
• Weight (Without HDD)≤ 1.16 kg (2.6 lb).

Soporte

3 AÑOS DE GARANTÍA en todos los productos Hikvision, ofrecida por el fabricante, contra defectos de fabricación y/o vicios del material que afecten al normal funcionamiento del mismo.
Contamos con un departamento técnico, con stock permanente de repuestos, que le permitirá contar con un servicio en caso de necesidad de reparación del producto. Para más información diríjase a la sección Soporte Técnico.
